5 Foot Black RG58 Cable (SMA Connectors) - 955805

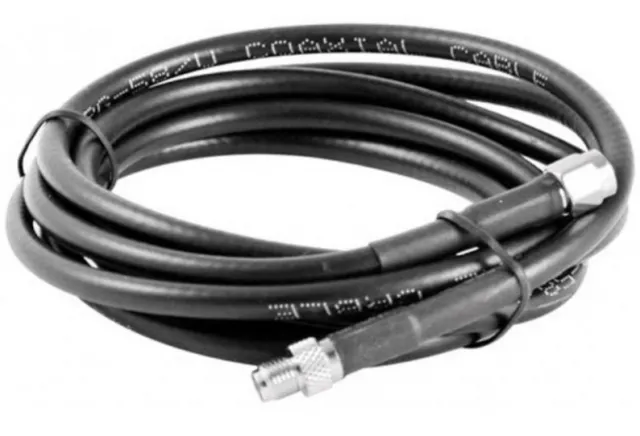

5' Black RG58 Cable (SMA/Male & SMA/Female Connectors)


3 Customer Reviews 1 Questions
In Stock
Item Number: 5438
Model: 955805
Quantity:

Price:

$9.99

Related Products

This 5' RG-58 cable has an SMA/Female connector on one side and an SMA/Male connector on the other.

Specifications:

  • Cable length: 5'
  • Connectors: SMA/Female and SMA/Male
  • Impedence: 50ohms
  • Cable diameter: 3/16"

Signal Loss:

  • The amount of signal attenuation you'll see depends on which frequency you're using. This cable averages approximately 1dB of signal loss. Attenuation for each frequency is below:
    • 700mhz: .6dB
    • 800mhz: .7dB
    • 1700mhz: 1dB
    • 1900mhz: 1.1dB
    • 2100mhz: 1.1dB
    • 2400mhz: 1.2dB
    • 2500mhz: 1.3dB
  • Approximately .5dbm is lost at each connection between 2 cables
  • To prevent excessive signal loss, this cable should NOT be daisy chained with other cables! It is always better to use one longer piece of cable than to screw two shorter cables together.



Filter Reviews
   Last 2 Weeks (0)
    100% (3)
    0% (0)
    0% (0)
    0% (0)
    0% (0)

  Show Brief Review
  Show 5Gstore Comments
 Last 6 Months (0)
All Reviews (3)


Only customers who bought this item from 5Gstore can write a review - these are all verified 5Gstore purchases

Date Added: 11/15/2018 by Gina B. (Alden, IA)
Thank you

Date Added: 10/18/2017 by Tim P. (Mount Pleasant, SC)
It does the job it is intended for. Running the cable through the wall of our RV was a little difficult but the cable performs as it should.

Date Added: 09/13/2013 by John D. (Elkhart, IN)
The right cable at the right time.

If you purchased this item, Login to write a review.
Q & A
Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!


Click here to submit a new question
Sort By:

Why is the impedence?

Impedence: 50ohms
