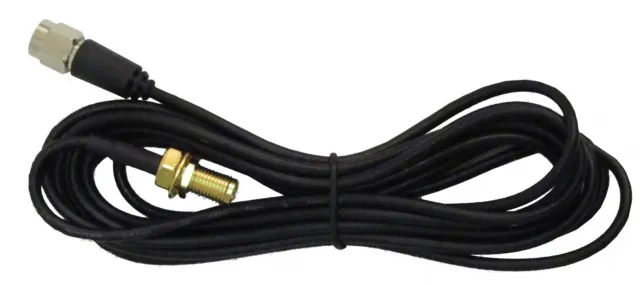

10 Foot Black RG58 Cable (SMA/Male & SMA/Female Connectors)

This 10' RG58 cable has an SMA/Male connector on one side and an SMA/Female connector on the other.

This cable is typically used as an extension cable for antennas terminated in SMA/Male, or to connect an antenna with an SMA/Male connector to an amplifier with an SMA/Female connector.

Specifications:

• Cable length: 10'
• Connectors: SMA/Female and SMA/Male
• Impedence: 50ohms
• Cable diameter: 3/16"

Signal Loss:

• The amount of signal attenuation you'll see depends on which frequency you're using. This cable averages approximately 1.9dB of signal loss. Attenuation for each frequency is below:

  • 700mhz: 1.3dB
  • 800mhz: 1.4dB
  • 1700mhz: 2dB
  • 1900mhz: 2.2dB
  • 2100mhz: 2.3dB
  • 2400mhz: 2.5dB
  • 2500mhz: 2.5dB
• Approximately .5dbm is lost at each connection between 2 cables
• To prevent excessive signal loss, this cable should NOT be daisy chained with other cables! It is always better to use one longer piece of cable than to screw two shorter cables together.
