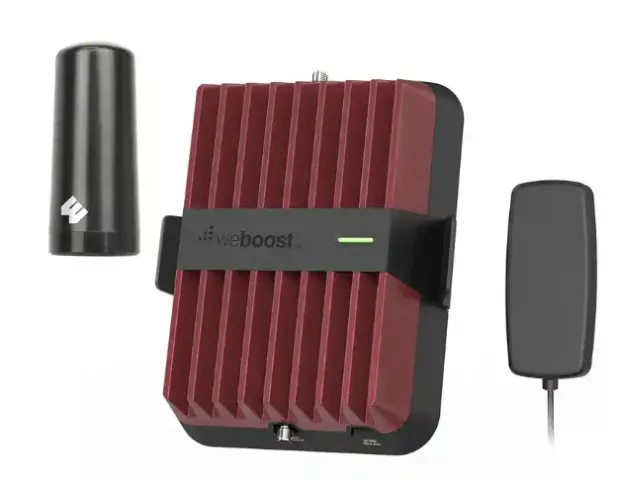

weBoost Drive Reach Fleet NMO Repeater Kit - 470254 - 470254

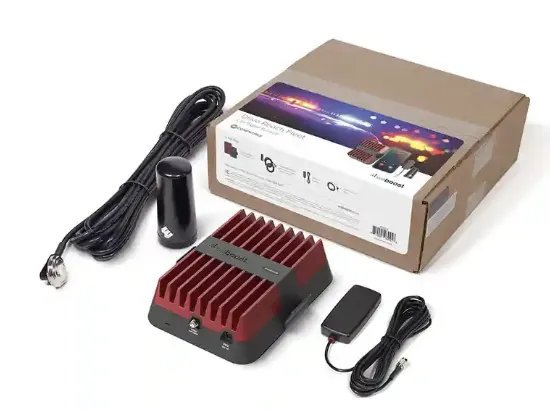

  • weBoost Drive Reach Fleet NMO Repeater Kit - 470254 - With packaging

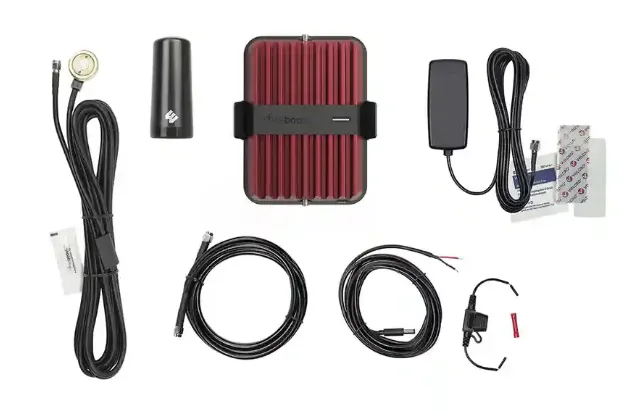

  • weBoost Drive Reach Fleet NMO Repeater Kit - 470254 - Contents

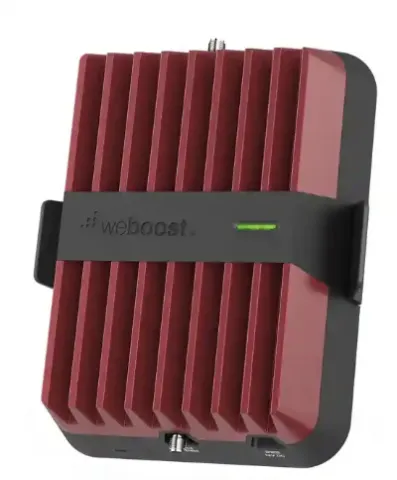

  • weBoost Drive Reach Fleet NMO Repeater Kit - 470254 - Amp

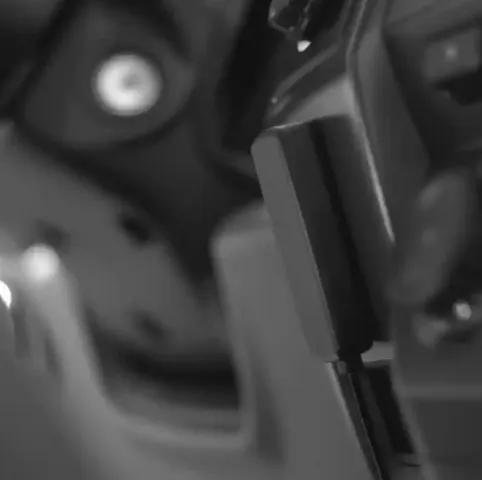

  • weBoost Drive Reach Fleet NMO Repeater Kit - 470254 - Interior antenna installed

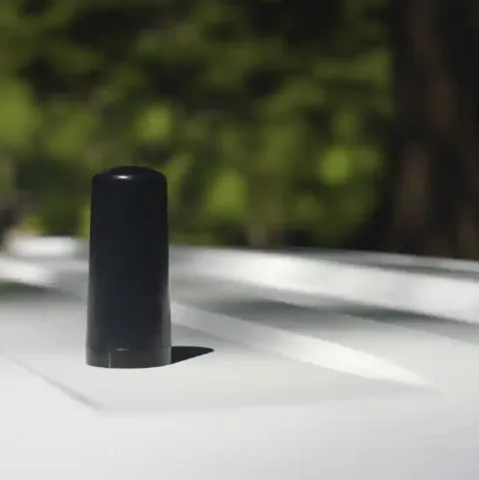

  • weBoost Drive Reach Fleet NMO Repeater Kit - 470254 - Exterior antenna

weBoost Drive Reach Fleet NMO Repeater Kit - 470254

In Stock
Item Number: 8872
Model: 470254
Quantity:

Price:

$524.99

Related Products

The Drive Reach is weBoost’s most powerful, in-vehicle cell phone signal booster yet. With its increased uplink output, users get signal up to 2X farther from towers with over twice the signal strength—signifying an increase of almost 5dB in uplink output power.

With this 5 dB increase in signal output, Drive Reach Fleet effortlessly provides your team with the enhanced signal strength
needed to communicate and stay connected when it matters most. The Drive Reach Fleet boosts voice and data signal for multiple
users and cellular-connected devices simultaneously within the fleet vehicle. This kit uses a high-performance NMO antenna, which
REQUIRES PROFESSIONAL INSTALLATION. The Drive Reach Fleet enhances all available wireless network signals and speeds with
50 dB system gain—the maximum allowed by the FCC.

Amplifier Features:

  • Coverage area*: 3-10' (e.g. front seat area of a vehicle)
  • All-in-One Kit? YES
  • Compatibility: This amplifier supports 700mhz/800mhz/1700mhz/1900mhz/2100mhz networks (which includes most 2G, 3G, and 4G providers in the US). Supported carriers/networks include:
    • Verizon 2G/3G/4G/AWS
    • Sprint 2G/3G (gain is minimal for Sprint 4G LTE, and only on the 1900mhz band. This amplifier does not support Sprint's 2500mhz LTE band)
    • AT&T 2G/3G/4G/LTE
    • US Cellular 2G/3G/4G
    • T-Mobile 2G/3G/4G
    • MetroPCS 2G/3G/4G
    • For other carriers, confirm which frequency your provider is using and make sure this amplifier supports it before purchasing! Contact us if you need any assistance.

*Many factors will influence the actual coverage area you will see from a repeater, including layout/floorplan, construction, and original un-amplified signal strength. Depending on your situation, you may see more or less coverage than the estimates listed here. It is not possible to guarantee coverage area.

weBoost-Drive-Reach-Fleet-470254-installation-guide(8872).pdf
weboost-drive-reach-flex-installation-manual(11225).pdf
weBoost-Drive-Reach-Overland-Install(13067).pdf



Installation notes:

  • In order for your system to function properly, you must maintain adequate separation between the outside and inside antennas (if the antennas are too close together, there will be oscillation/feedback between the antennas and the amplifier will shut down). This amplifier requires approximately 5' of separation between the outside and inside antennas. Separation can be horizontal or vertical.
  • Professional installation is recommended for NMO antennas
  • The inside antenna should be mounted within a couple of feet of where boosted signal is needed. In a typical vehicle, the best place to mount the inside antenna is shoulder height on the side of the drivers seat. Remember, the closer your phone is to the interior antenna, the better the performance.
  • Do not mount the interior antenna within 4" of metal.
  • You CANNOT use a traditional adapter cable that plugs directly into an antenna port on a phone/modem with this amplifier - doing so will damage your device! If you want a direct connect amplifier, see our direct connect options

Features & Benefits:

  • Boosts 4G/LTE & 3G for multiple cellular devices, simultaneously, in a fleet vehicle (Police, Work, Service and Delivery vehicles) .
  • Works on ALL cellular devices with ALL carriers simultaneously.
  • Enhances talk, text, and high-speed 4G LTE internet.

Package Includes:

  • Amplifier
  • 850022 Hardwire DC power supply
  • 314419 Slim low profile ("candy bar") antenna with 10' cable
  • 314405 NMO antenna
  • 904423 3/4 inch NMO Mount w/ 14' cable
  • 6' RG58 extension cable
  • Hole drilling protective tape
  • O-ring sealant

Specifications:

  • Part Number: 470254
  • Frequency Range:
    • BAND 12/17: 700 MHz
    • BAND 13: 700 MHz
    • BAND 5: 850 MHz
    • BAND 4: 1700/2100 MHz
    • BAND 25/2: 1900 MHz
  • Max Gain: 50 dB
  • Power Requirements: 5V / 4.5A
  • Impedance: 50ohms
  • Connectors: SMB
  • Dimensions: 6 x 4.5 x 1.5 in (amplifier)
  • Weight: 1.80 lb (amplifier)
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
