SureCall Force5 2.0 Voice & LTE Booster - Yagi/Panel - SC-POLYO2-72-YP

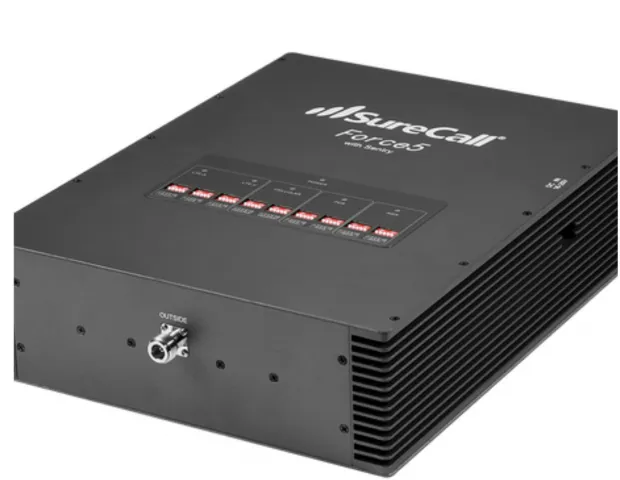

  • SureCall Force5 2.0 Voice & LTE Booster - Yagi/Panel - Side Force5 2.0 amplifier

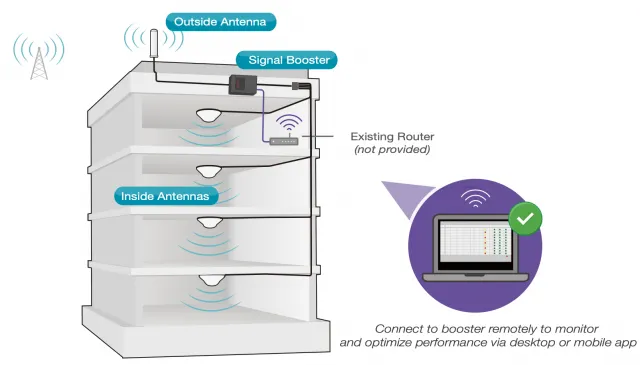

  • SureCall Force5 2.0 Voice & LTE Booster - Yagi/Panel - Installation example (this kit has yagi/1 panel)

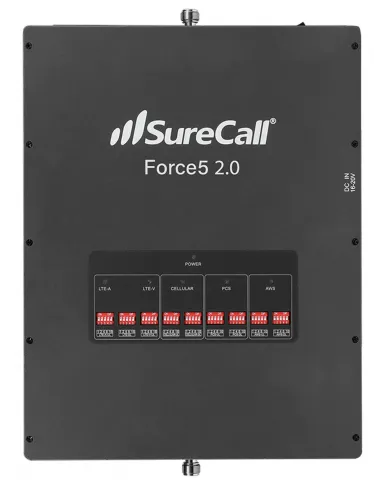

  • SureCall Force5 2.0 Voice & LTE Booster - Yagi/Panel - Force5 2.0 amplifier

SureCall Force5 2.0 Voice & LTE Booster with Yagi/Panel Antennas

Call for Availability
Item Number: 7542
Model: SC-POLYO2-72-YP
Quantity:

Price:

$4,999.00

A surge protector goes in between your outside antenna and the amplifier and protects your amplifier if lightning strikes your antenna. It's not required but is recommended for users in areas where lightning strikes frequently.
Add Lightning Protection (optional) - details
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

SureCall’s Force5 2.0 is the next evolution in cellular booster technology. Known as a wideband DAS solution, it provides improved cellular coverage for large buildings with the use of a powered bi-directional amplifier and non-powered antennas and coax-cables. The self-contained cell phone signal booster improves signal strength for all major North American cell carriers resulting in decreased dropped and missed calls and improved 4G LTE data performance.

Additionally, the Force5 2.0 is the first ever cell phone signal booster equipped with built-in remote monitoring through SureCall's proprietary Sentry software and hardware. This allows integrators to optimize booster performance during installation and while located off-site using theiPhone® orAndroid® app, or through the desktop interface.

Features:

  • This repeater kit is best for: Users who need to provide amplified voice, 3G, and 4G signal for 100+ users in a large buliding and want to be able to monitor the installation via the Sentry tool.
  • Coverage area*: 25,000+ square feet
  • All-in-One Kit? YES
  • Compatibility: This amplifier supports 700mhz/800mhz/1700mhz/1900mhz/2100mhz networks (which includes most 2G, 3G, and 4G providers in the US). Supported carriers/networks include:
    • Verizon 2G/3G/4G/AWS
    • Sprint 2G/3G/4G - 4G LTE will only be improved where Sprint is using the 1900mhz band. This amplifier does NOT support Sprint's 2500mhz LTE band
    • AT&T 2G/3G/4G/LTE
    • US Cellular 2G/3G/4G
    • T-Mobile 2G/3G/4G
    • MetroPCS 2G/3G/4G
    • For other carriers, confirm which frequency your provider is using and make sure this amplifier supports it before purchasing! Contact us if you need any assistance.
IMPORTANT SIGNAL INFORMATION: If you're purchasing an amplifier for use at one specific location, we strongly recommend doing a site survey first to determine whether the amplifier will help you and to give you an idea of what kind of results you can expect from it.

If your signal is extremely poor (-108db or worse), an amplifier may not be effective - there must be some usable signal available for the amplifier to boost. Conversely, if the signal is too STRONG at your location (-50db or better), the amplifier may shut down to avoid interference with the tower.

How it works: The outside antenna picks up the cellular signal and sends it through the first cable to the amplifier. The signal is then boosted and sent through the second cable to the inside antenna, which rebroadcasts the boosted signal. All of your modems/phones within range of the inside antenna can benefit from the boosted signal wirelessly.

*Many factors will influence the actual coverage area you will see from a repeater, including layout/floorplan, construction, and original un-amplified signal strength. Depending on your situation, you may see more or less coverage than the estimates listed here. It is not possible to guarantee coverage area.

Force5_2_Data_Sheet(11157).pdf
Force5_2_Data_Sheet(7542).pdf
Force5_2.0_User_Guide(11157).pdf
Force5_2.0_User_Guide(7542).pdf



Installation notes:

  • In order for your system to function properly, you must maintain adequate separation between the outside and inside antennas (if the antennas are too close together, there will be oscillation/feedback between the antennas and the amplifier will shut down). This amplifier requires approximately 60' of separation between the outside and inside antennas. Separation can be horizontal or vertical.
  • If you cannot achieve adequate separation to eliminate oscillation, you can turn down the gain on the amplifier, but that will result in a smaller coverage area from the amplifier.
  • The interior antenna should be at least 10' away from the amplifier.

Features & Benefits:

  • Boosts signal for voice, text and 4G LTE data for all major North American carriers
  • Reduces dropped and missed calls and improves data performance for 100+ simultaneous users
  • Improves signal coverage for 25,000 sq. ft. in typical conditions; up to 100,000 sq. ft. in ideal conditions*
  • Built-in Sentry remote monitoring system that allows users to adjust the booster attenuation via iPhone or Android mobile app or desktop
  • High linearity across all frequency bands allowing for maximum data throughput
  • Each band is independently configurable to function in the most challenging environments
  • Max downlink power for superior performance even with excessive signal (no shutdown)
  • Multiple kitting options provide the flexibility to accommodate any floor plan
  • FCC certified
  • VoLTE certified
  • 3-year warranty
  • 5-year extended warranty available

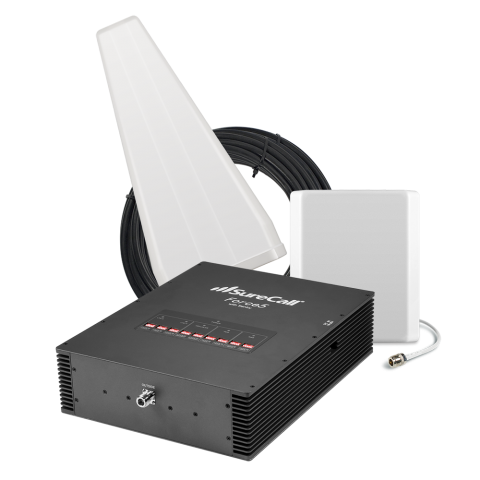

Package Includes:

  • 72db amplifier
  • SC-230W yagi exterior antenna
  • SC-248W interior panel antenna
  • 30ft CM400 cable (N/Male connectors)
  • 75ft CM400 cable (N/Male connectors)
  • AC power supply

Specifications:

  • Frequency Range:
    • Uplink: 698-716 / 776 – 787 / 824-849 / 1850-1910 /1710-1755 G Block Included
    • Downlink : 728-746 / 746 – 757 / 869-894 / 1930-1990 / 2110-2155 G Block Included
  • Standards Supported: CDMA, WCDMA, GSM, EDGE, HSPA+, EVDO, 4G and all cellular standards
  • Impedance: 50ohms
  • Maximum Gain: 72 dB
  • Maximum Downlink Power: 17 dBm
  • Noise Figure: 5 dB
  • VSWR: Less than 2:1
  • AC Power Transmitter: Input AC 110 V, 60 Hz / Output DC 15-20 V
  • Max Output Power: 1 watt EIRP
  • RF Connectors: N Female on both sides
  • Power Consumption: <65W
  • Dimensions: 14.5 x 11 x 3.5" (amplifier)
  • Weight: 23.5 (amplifier)
  • FCC ID (USA): RSNFORCE5S
This is a CONSUMER device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your provider's consent. Most wireless providers consent to the use of signal boosters. Some providers may not consent to the use of this device on their network. If you are unsure, contact your provider.
You MUST operate this device with approved antennas and cables as specified by the manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by the FCC or a licensed wireless service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by using this device.
Please note, the four largest carriers - AT&T, T-Mobile, Verizon and Sprint - and more than 90 regional carriers have given blanket consent for use of all boosters certified to the new FCC standards.
