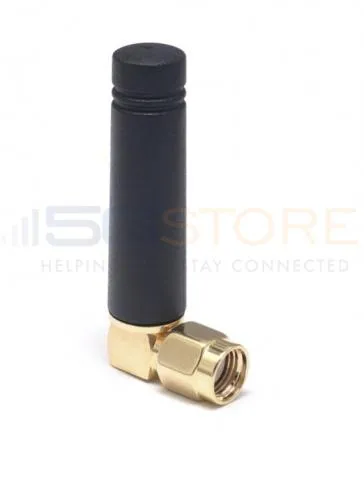

2J Right-Angle 1.7" 2.4/5.8GHz WiFi Antenna This 1.7" right-angle WiFi antenna has an RP-SMA/Male connector for use with routers/gateways that have RP-SMA WiFi connectors. As all monopole antennas, it works best connected directly to the ground-plane of the device main PCB or to the outside of a metal housing. Features: Extremely compact - 1.7" x 0.7" x 0.35 High efficiency Standard RP-SMA(M) connector ROHS Compliant 2J0A02-C367G 2J0A02-C367G

Antenna > WiFi Antenna

2J0A02-C367G

$ $3.99 2J0A02-C367G https://dev.5gstore.com/product/10902_2j_right-angle_17_2458ghz_wifi_antenna.html

This 1.7" right-angle WiFi antenna has an RP-SMA/Male connector for use with routers/gateways that have RP-SMA WiFi connectors. As all monopole antennas, it works best connected directly to the ground-plane of the device main PCB or to the outside of a metal housing.

Features:

Extremely compact - 1.7" x 0.7" x 0.35
High efficiency
Standard RP-SMA(M) connector
ROHS Compliant

Specifications:

Country of Origin	Taiwan
No. of Cellular Connectors	0
No. of WiFi Connectors	1
No. of GPS Connectors	0
WiFi Connector	RP-SMA Male
Antenna Type	Indoor
Antenna Style	Paddle
Antenna Mount	Screw-on
Antenna Color	Black
Length (in)	1.7
Width (in)	0.7
Height (in)	0.35
Weight (lb)	0.02
Maximum Gain	1.5
Impedance Ω (Input/Output)	50
Minimum Temperature (F)	-40
Maximum Temperature (F)	185
Material	ASA UV Stable
