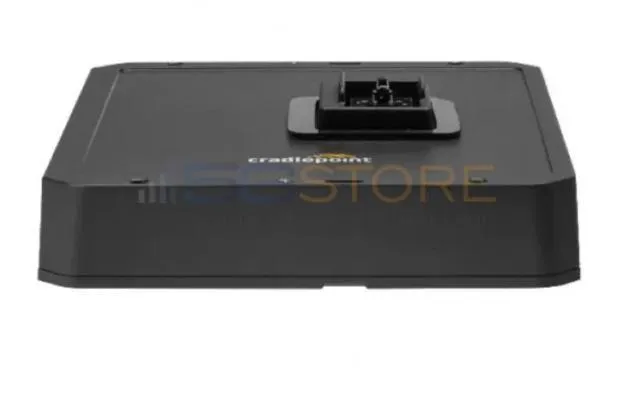

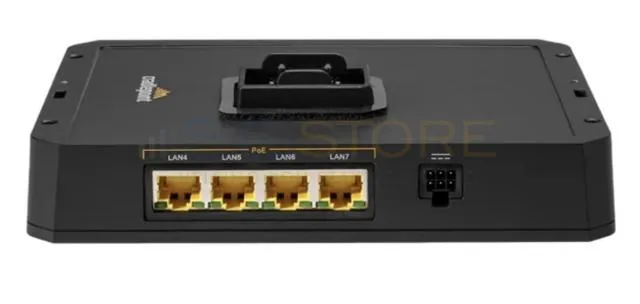

The RX30 POE Managed Accessory is compact and ruggedized for use with the R1900 Series router. It provides four additional GbE PoE ports to connect and power additional Ethernet connected devices.

Specifications:

Technology:
- Ruggedized 4-port PoE 802.3bt (60W)
- 6-pin (2x3) Molex Micro-fit External Power
  Connector
Environmental:
- Temperature:
  - Operating: -22 °F to 158 °F (-30 °C to 70 °C)
  - Storage: -40 °F to 185 °F (-40 °C to 85 °C)
- Humidity:
  - Operating: 10% to 90%
  - Storage: 5% to 95%
Power:
- Input power:
  - DC input steady state voltage range: 9–36 VDC
  - 6-pin (2x3) Molex Micro-fit External Power Connector
  - Reverse polarity and transient voltage protection per ISO 7637-2
- Power consumption:
  - R1900-5GB + RX30 12V input, 77F (25C) ambient temperature
  - Idle: 14 W
  - Typical: 21 W
  - Heavy: 23 W
Physical:
- Size: 6.81 x 5.98 x 1.18 in (173 x 152 x 30 mm)
- Weight: 1.85 lb (0.84 kg)
Included:
- RX30 POE accessory
- GPIO & Power Cable, 2x3, 3 meters, 18AWG (170858-000)
