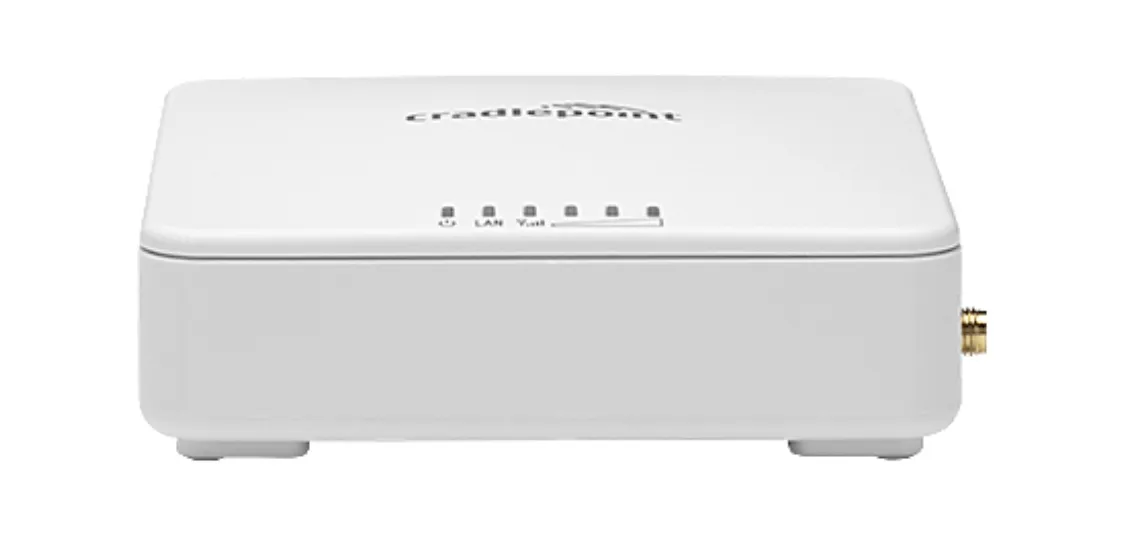

CradlePoint 150Mbps LTE Captive Modem for E300 and E3000 - 170900-001
  • CradlePoint 150Mbps LTE Captive Modem for E300 and E3000 - Back View

LTE Captive Modem Accessory, Indoor, CBA550-150M-D (150Mbps modem), Americas; Used with CR4250-PoE, R1900, IBR1700, E300, and E3000

6 Support Docs
Call for Availability
Item Number: 10649
Model: 170900-001
Quantity:
Have a large deployment?
Request a Quote

Price:

$339.00

Related Products
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

This modem must be used with a Cradlepoint E300 or E3000 router (sold separately). It cannot be used on its own or with other routers.

Specifications:

  • WAN:
    • Embedded 150M Category 4, LTE modem with DC-HSPA Failover
  • LAN:
    • One LAN 10/100 Ethernet port
  • Temperature:
    • 0° C to 50° C (32°F to 122°F) operating
    • −20° C to 70° C (−4°F to 158°F) storage
  • Humidity (non-condensing):
    • 10% to 85% operating non-condensing
    • 5% to 90% storage non-condensing
  • Power:
    • 802.3af (15 W) or 802.3at (30 W) PoE capable
  • Power Consumption (Typical):
    • Idle: 1.5W
    • Heavy Usage (max power): 5.1W
  • Size:
    • 4.8 × 4.8 × 1.7 in (122 × 122 × 42 mm)
  • Housing:
    • White plastic, locking compatible
    • Wall, desk, or DIN Rail mounting
  • Certifications:
    • FCC, CE, IC, GCF-CC, RCM (Australia & New Zealand), IDA (Singapore), SIRIM (Malayisa)
    • Safety: UL/CUL/CB Scheme
    • Materials: WEEE, RoHS, RoHS-2, California Prop 65
  • Modem Specifications:
    • Technology: LTE Cat 4 (3GPP Rel 11), DC-HSPA+
    • Downlink Rates: LTE 150 Mbps, HSPA+ 42.2 Mbps*
    • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps*
    • Frequency Bands:
      • LTE: Band 2 (1900 MHz), Band 4 - AWS (1700/2100 MHz), Band 5 (850 MHz), Band 12 (700 MHz), Band 13 (700 MHz), Band 14 (700 MHz), Band 66 - AWS 3 (1700/2100 MHz), Band 71 (600 MHz)
      • WCDMA/HSPA+/UMTS: Band 2, Band 4, Band 5
    • Power: LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1
    • Antennas: Two SMA male (plug). The recommended maximum torque is 4 inch-pounds (4 in-lbs).
    • Industry Standards & Certs: FCC, IC, PTCRB, AT&T, FirstNet Ready, Verizon
    • SIM slots: 2 x Standard 2FF (if you plan to use a micro or nano SIM, you'll need a SIM adapter)
    • Certified on public safety networks for North America (U.S., Canada)
  • Package contents:
    • Captive modem
    • Universal LTE antennas
    • Ethernet cable
    • Mounting hardware
    • Safety, Regulatory, and Warranty guide
