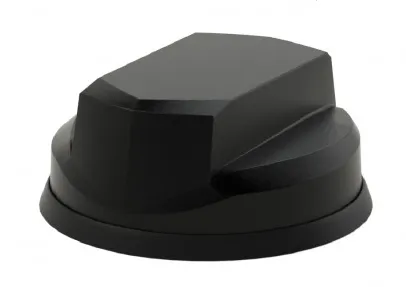

Panorama Black 5G Dome Antenna (2xCell) - LP-IN2455

Panorama Dome Antenna for MiMo Cellular/5G - Black


1 Customer Review 1 Questions
In Stock
Item Number: 10497
Model: LP-IN2455
Quantity:
Have a large deployment?
Request a Quote
Login for Special Pricing

Price:

$273.78

The LP-IN2455 dome vehicle antenna consists of two isolated high-performance antenna elements covering  617-960/1710-6000MHz, offering MiMo/Diversity at cellular/LTE frequencies. The antenna is designed to be panel mounted and can be fitted on a conductive or non- conductive panel. Supplied with integrated flame retardant RG174 cables (Compliant to UNECE 118.01 and EN45545-2) and a halogen free flame retardant radome the antenna is suitable for many environments and applications.

Features:

  • 2x2 MiMo 617-960/1710-6000MHz
  • 2 x 5m cables
  • Single mounting hole; easier installation
  • No metal ground plane required


Specifications:

No. of Cellular Connectors 2
No. of WiFi Connectors 0
No. of GPS Connectors 0
Cellular Connector SMA Male
Antenna Type Outdoor
Antenna Style Dome
Antenna Mount Panel/Enclosure
Antenna Color Black
Width (in) 7.1
Height (in) 3.1
Weight (lb) 3
Maximum Gain 10
Impedance Ω (Input/Output) 50
Cable Length (in) 192
Cable Type CS29
Minimum Temperature (F) -40
Maximum Temperature (F) 176
Material A.S.A & diecast aluminium
VSWR (Voltage Standing Wave Radio) < 2.5:1

Filter Reviews
   Last 2 Weeks (0)
    100% (1)
    0% (0)
    0% (0)
    0% (0)
    0% (0)

  Show Brief Review
  Show 5Gstore Comments
 Last 6 Months (0)
All Reviews (1)


Only customers who bought this item from 5Gstore can write a review - these are all verified 5Gstore purchases

Date Added: 03/14/2022 by Peter K. (Calistoga, CA)
I just installed the Panorama LP-IN2455 and and connected it to my router. The result exceed all expectation. The signal strength at my router is now -58db, up from -85db before. Speed tests are hitting around 49 Mbps down, 40 Mbps up, close the the maximum claimed by Verizon in my area. I could not be happier.

If you purchased this item, Login to write a review.
Q & A
Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!


Click here to submit a new question
Sort By:

Can the Panorama Dome antenna, model LP-IN2455, be mounted perpendicular as opposed to horizontal?

You certainly can but it is important to note that these antennae radiate outward in a bubble so some of the radiation pattern will be hitting the ground if you don't have it mounted upright.
