Sierra Wireless AirLink MG90 with 1 x 5G/Cat 20 LTE - 1104708
  • Sierra Wireless AirLink MG90 with 1 x 5G/Cat 20 LTE - Back

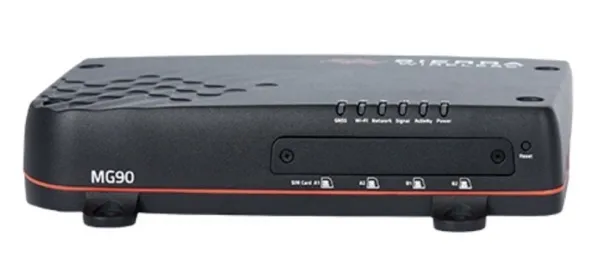

Sierra Wireless AirLink MG90 High Performance Vehicle Router with 5G/Cat 20 LTE Modem

25 Support Docs
Call for Availability
Item Number: 10437
Model: 1104708
Quantity:
Have a large deployment?
Request a Quote

Price:

$2,099.00

Related Products
This is a special-order item that requires additional lead time. Contact us before ordering if you need a more exact ETA.

All MG90 deployments require subscriptions to Sierra AirLink Support and AMM as well as the purchase of a Sierra Professional Service. Cellular and WiFi antennas are also required and sold separately. Contact us to discuss your needs and to receive a customized quote.

The AirLink® MG90 is a high performance 5G vehicle networking platform that offers extensible multi-network connectivity, to provide secure uninterrupted communications for the world’s most demanding mission critical applications in public safety, transit and field services fleets.

With extensible multi-network connectivity, the MG90 offers a 5G radio with Cat 20 LTE backup, dual concurrent Gigabit Wi-Fi and Gigabit Ethernet, with extensions to Land Mobile Radio (LMR) and satellite systems.

Router features:

  • This router is best for: First responders, field personnel, and other vehicle users.
  • Internet Connections Supported: 1 Embedded 5G/Cat 20 LTE IMPORTANT: you will need a 2mm Hex L-wrench (not included) to access the SIM slot on the router, WiFi as WAN* (more info)
  • Networks Supported for Embedded Modem: 5G: Sub-6: n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41*, n48, n66, n71, n77, n78, n79; LTE: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 2600(B7), 900(B8), 700(B12), 700(B13), 700(B14), 700(B17), 850(B18), 850(B19), 800(B20), 1900(B25), 850(B26), 700(B28), 700(B29), 2300(B30), 1500(B32), TDD B38, TDD B39, TDD B40, TDD B41, TDD B42, TDD B46, CBRS B48, 1700(B66), 600(B71); WCDMA/HSPA+: 2100(B1), 1900(B2), 1800(B3), AWS(B4), 850(B5), 800(B6), 900(B8), 1700(B9), 850(B19)
    • AT&T and Verizon certifications pending
  • WiFi Standard: 3x3 MIMO 802.11 b/g/n/ac
  • WiFi Range: 150-200'
  • Ports: 5 x 10/100/1000 LAN, 1 RS-232 serial
  • Power supply: Hardwire DC power supply; AC power supply and cigarette lighter power supply are available separately
  • Size: 10.71" x 8.66" in x 2.36"

*Compatibility with all WiFi networks cannot be guaranteed. Networks requiring authentication on a "splash page" (e.g. Starbucks WiFi) in particular can be hit or miss.

Multi-Network Vehicle Router _ AirLink MG90 (1103981).pdf
Multi-Network Vehicle Router _ AirLink MG90 (1104708).pdf
Multi-Network Vehicle Router _ AirLink MG90 (1104709).pdf

Latest Blog Posts About This Product


Latest YouTube Videos About This Product


Popular Comparisons

Specifications:

Country of Origin China
No. of Cellular Connectors 4
No. of WiFi Connectors 6
No. of GPS Connectors 1
Cellular Connector SMA Female
WiFi Connector RP-SMA Female
GPS Connector SMA Female
No. of LAN Ports 5
No. of WAN Ports 0
No. of Fiber (SFP) Ports 0
No. of Serial Ports 1
No. of Embedded Modems 1
Ports Configurable as LAN/WAN Yes
USB Port LAN
WAN Throughput Speed 1 Gbps
SIM Card Size 2FF
eSIM Support No
Length (in) 8.6
Width (in) 10.7
Height (in) 2.4
Weight (lb) 5.3
Minimum Temperature (F) -22
Maximum Temperature (F) 158
Material Sealed Aluminum Housing (IP64 Rated)
Antennas Included No
Modem Expansion Slot No
Modem Replaceable No
FIPS Certified Yes
WiFi Support WiFi 5
Cloud Management Included Yes
Power Input 7 to 36 VDC
Bluetooth Yes
Bonding Support No
IP Passthrough No
