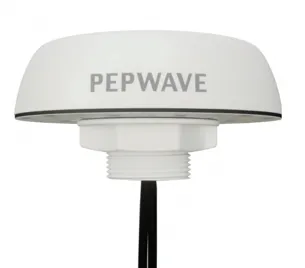

Pepwave Mobility 02 2 x WiFi Dome Antenna - White The Peplink Mobility 02 (AKA Puma 020) is a dual-band (2.4GHz & 5GHz) Wi-Fi antenna built for mobile applications. The Mobility 02 supports 2x2 MIMO and has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments. For easy installation, the antenna comes with 6 foot cables with RP-SMA connectors. Features: Dual band for 2.4Ghz and 5.0GHz WiFi Durable and UV-stable housing IP67 rated 2 x 6.5' cables with RP-SMA male connectors ANT-MB-02-R-W-6 ANT-MB-02-R-W-6

Peplink

Antenna

710859518099

$ $149.00 710859518099 https://dev.5gstore.com/product/10299_pepwave_mobility_02_2_x_wifi_dome_antenna_white.html

The Peplink Mobility 02 (AKA Puma 020) is a dual-band (2.4GHz & 5GHz) Wi-Fi antenna built for mobile applications.

The Mobility 02 supports 2x2 MIMO and has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments. For easy installation, the antenna comes with 6 foot cables with RP-SMA connectors.

Features:

Dual band for 2.4Ghz and 5.0GHz WiFi
Durable and UV-stable housing
IP67 rated
2 x 6.5' cables with RP-SMA male connectors

pepwave_mobility_02_datasheet(10298).pdf

Latest Blog Posts About This Product

Latest YouTube Videos About This Product

Specifications:

Country of Origin	Taiwan
No. of Cellular Connectors	0
No. of WiFi Connectors	2
No. of GPS Connectors	0
WiFi Connector	RP-SMA Male
Antenna Type	Outdoor
Antenna Style	Dome
Antenna Mount	Multi
Antenna Color	White
Width (in)	5.12
Height (in)	1.42
Weight (lb)	2
Maximum Gain	7.3
Impedance Ω (Input/Output)	50
Cable Length (in)	78
Cable Type	CFD200
Minimum Temperature (F)	-40
Maximum Temperature (F)	176
Material	UV stable PC and ABS
VSWR (Voltage Standing Wave Radio)	<2.0

There are currently no product reviews.

If you purchased this item, Login to write a review.

Q & A

Got questions about this product? Here you can view questions that other customers have asked (and the answers!). If you have a question that hasn't been answered below, you may submit a new question and 5Gstore will answer it!

Click here to submit a new question

Sort By:

How far will the Peplink Mobility antenna transmit a signal for both 2.4gHz and 5gHz?

Typical broadcast range for 2.4GHz is roughly 150 feet. 5GHz is roughly 50 feet. Signal interference, physical obstructions and installation location affect expected broadcast range.

Can I paint the Peplink Mobility or Maritime antennas?

Yes you can paint the Peplink antennas and it will not void your warranty. Just be sure to NOT use any paints with metallic flake in it. This can interfere with the signal gain.

Do the Peplink Mobility antennas come with cable?

Yes, 6.5ft cables are included with the Mobility antennas.

Is there a mount available for the Peplink mobility antenna to allow it to be mounted to a 2" pipe?

The antenna comes with a pole mounting kit. For more details on the included contents you can find the data sheet here:

https://download.peplink.com/resources/pepwave_puma_221_datasheet.pdf

Does the Peplink/ Pepwave Mobility/ Puma antennas require a ground plane?

These antennas do not require a ground plane.

Can the Peplink Mobility antenna be used for roof mounted vehicle applications?

Yes, it can be installed through-roof style for vehicles
